MOTHERBOARD MSI MPG B650 EDGE WIFI DDR5

MPG B650 EDGE WIFI emplea un esquema de color blanco plateado para mostrar una personalidad e identidad diferentes. Además de ser elegante, también es potente. MPG B650 EDGE WIFI Compatible con los procesadores AMD Ryzen™ serie 7000 Soporta Memorias DDR5, hasta 7800+(OC) MHz Diseño de potencia mejorada: DRPS 14+2+1 potencia VRM, Core Boost, Memory Boost Solución térmica de primera calidad: Disipador térmico ampliado, almohadillas térmicas para MOSFET con un valor nominal de 7W/mK, almohadillas térmicas adicionales y M.2 Shield Frozr están construidos para un sistema de alto rendimiento y juegos sin interrupciones PCB de alta calidad: PCB de 6 capas fabricado con cobre de 2 onzas de espesor y material de nivel servidor Solución LAN 2,5G y Wi-Fi 6E de AMD: Solución de red mejorada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida. Experiencia de juego a la velocidad del rayo: Ranuras PCIe 4.0, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2 Diseño amigable: Botón de Flash BIOS, Escudo de E/S preinstalado, Armadura de acero AUDIO BOOST 5: Premie a sus oídos con una calidad de sonido de estudio para una experiencia de juego más envolvente

$381
  • Marca: MSI
  • Envío:
Añadir al carrito
Compartir


Descripción del producto

CHIPSETAMD B650
CPUSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
MEMORY4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
ONBOARD GRAPHICS1x HDMI™
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT2x PCI-E x16 slot (Qty)
• Supports x16/x2 (For Ryzen™ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4/x2 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE3x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G (Qty)
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAIDSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
USB2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LANRealtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTHAMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIORealtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL IO1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
LED FEATURE4x EZ Debug LED
1x EZ LED Control switch

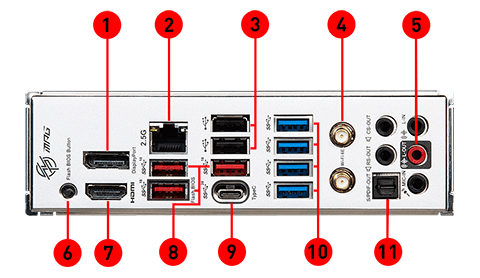

BACK PANEL PORTS
  1. Display Port
  2. 2.5G LAN
  3. USB 2.0 (Type-A)
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. Flash BIOS Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2x2 20Gbps (Type-C)
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. Optical S/PDIF Out
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFOATX
243.84mmx304.8mm
